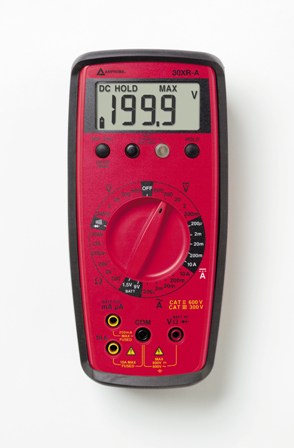

30XRA Digital Multimeter
Ref: 2727774
£123.00 £107.63 excl. VAT £129.16 inc. VAT• Compact multimeter with magnetic holster for hands-free testing
• Data hold function to freeze results on the screen
• Non-contact voltage detection
• Manual range selection
• LCD display screen with 3-1/2-digit, 1999 count
• Multiple functions: voltage, current and resistance measurement
• Also takes diode and acoustic continuity tests
• 1.5 V and 9 V battery test
• Overvoltage category: CAT III/300 V, CAT II/600 V
• Safety ratings: DIN VDE 0411, EN 61010, IEC 61010
• 1 x battery 9V (IEC 6LR61)
• Dimensions: 196 x 92 x 60 mm
• Weighs 426 g (including battery)
The device has the following measurement ranges:
• Voltage AC 0.1 mV…600 V
• Tolerance ±(1.5% rdg. + 4 Digits)
• Frequency Range 45…500 Hz
• Voltage DC 0.1 mV…600 V
• Tolerance ±(1% rdg. + 1 Digits)
• Input Impedance 10 MO
• Current AC 0.1 µA…10 A
• Tolerance ±(2% rdg. + 4 Digits)
• Frequency Range 45…500 Hz
• Current DC 0.1 µA…10 A
• Tolerance ±(2.0% rdg. + 3 Digits)
• Resistance 0.1 O…20 MO
• Tolerance ±(1% rdg. + 4 Digits)
• Continuity R < 75 O
